CoraLite® Plus 647 Anti-Human CD206 (15-2)

CD206 Monoclonal Antibody for FC

Host / Isotype

Mouse / IgG1, kappa

Reactivity

Human

Applications

FC

Conjugate

CoraLite® Plus 647 Fluorescent Dye

CloneNo.

15-2

Cat no : CL647-65155

Synonyms

CD206, CLEC13D, Macrophage mannose receptor 1, mannose receptor, C type 1, MMR, MRC1

---

Validation Data Gallery

•

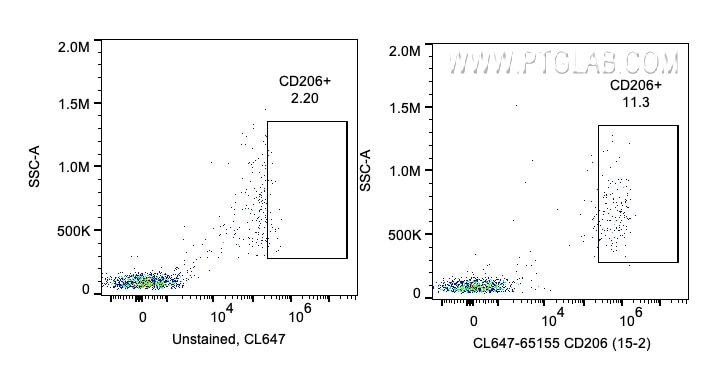

  FC experiment of human PBMCs using CL647-65155

  1X10^6 GM-CSF treated human PBMCs (red) or non-treated cells (blue) were surface stained with 5ul CoraLite® Plus 647 Anti-Human CD206 (CL647-65155, Clone:15-2). Cells were not fixed. Monocytes are gated.

---

Tested Applications

• Positive FC detected in: GM-CSF treated human PBMCs

Recommended dilution

Application	Dilution
This reagent has been pre-titrated and tested for flow cytometric analysis. The suggested use of this reagent is 5 μl per 10^6 cells in a 100 µl suspension or 5 μl per 100 µl of whole blood.
Sample-dependent, Check data in validation data gallery.

Product Information

CL647-65155 targets CD206 in FC applications and shows reactivity with Human samples.

• Tested Reactivity: Human
• Host / Isotype: Mouse / IgG1, kappa
• Class: Monoclonal
• Type: Antibody
• Immunogen: Purified human mannose receptor
• Full Name: mannose receptor, C type 1
• Calculated Molecular Weight: 166 kDa
• GenBank Accession Number: NM_002438
• Gene Symbol: CD206
• Gene ID (NCBI): 4360
• Conjugate: CoraLite® Plus 647 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 654 nm / 674 nm
• Form: Liquid
• Purification Method: Purified by protein-A affinity chromatography
• Storage Buffer: PBS with 0.09% sodium azide and 0.5% BSA.
• Storage Conditions: Store at 2-8°C. Avoid exposure to light. Stable for one year after shipment.

Background Information

CD206, also named as MMR, CLEC13D and MRC1, is a type I membrane receptor that mediates the endocytosis of glycoproteins by macrophages. CD206 has been shown to bind high-mannose structures on the surface of potentially pathogenic viruses, bacteria, and fungi so that they can be neutralized by phagocytic engulfment. CD206 is a 170 kDa transmembrane protein which contains 5 domains: an amino-terminal cysteine-rich region, a fibronectin type II repeat, a series of eight tandem lectin-like carbohydrate recognition domains (responsible for the recognition of mannose and fucose), a transmembrane domain, and an intracellular carboxy-terminal tail. It is expressed on most tissue macrophages, in vitro derived dendritic cells, lymphatic and sinusoidal endothelia.
