CoraLite® Plus 647-conjugated GFP tag Monoclonal antibody

GFP tag Monoclonal Antibody for IF/ICC, FC (Intra)

Host / Isotype

Mouse / IgG2a

Reactivity

recombinant protein

Applications

IF/ICC, FC (Intra)

Conjugate

CoraLite® Plus 647 Fluorescent Dye

CloneNo.

1E10H7

Cat no : CL647-66002

Synonyms

eGFP, GFP, YFP, eYFP, CFP

---

Validation Data Gallery

•

  IF Staining of Transfected HEK-293 using CL647-66002

  Immunofluorescent analysis of (-20°C Ethanol) fixed Transfected HEK-293 cells using CoraLite® Plus 647 GFP tag antibody (CL647-66002, Clone: 1E10H7 ) at dilution of 1:200.

•

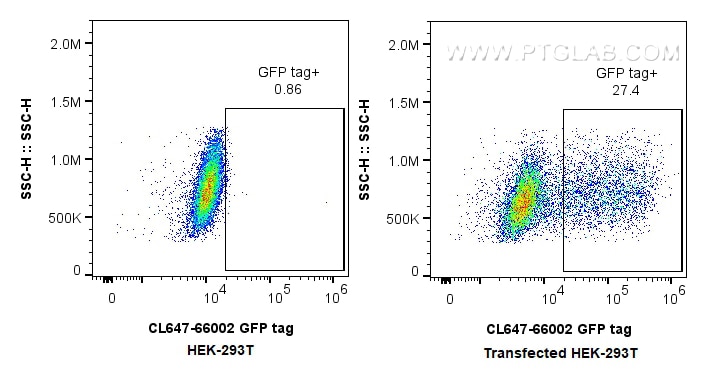

  FC experiment of Transfected HEK-293 using CL647-66002

  1X10^6 Transfected HEK-293 cells were intracellularly stained with 0.2 ug CoraLite® Plus 647 Anti-Aequorea victoria GFP tag (CL647-66002, Clone:1E10H7) (red), or 0.2 ug CoraLite® Plus 647 Mouse IgG2a Isotype Control (C1.18.4) (CL647-65208, Clone: C1.18.4) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Tested Applications

• Positive IF/ICC detected in: Transfected HEK-293 cells
• Positive FC (Intra) detected in: Transfected HEK-293 cells

Recommended dilution

• Immunofluorescence (IF)/ICC: IF/ICC : 1:50-1:500
• Flow Cytometry (FC) (INTRA): FC (INTRA) : 0.20 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL647-66002 targets GFP tag in IF/ICC, FC (Intra) applications and shows reactivity with recombinant protein samples.

• Tested Reactivity: recombinant protein
• Host / Isotype: Mouse / IgG2a
• Class: Monoclonal
• Type: Antibody
• Immunogen: GFP tag fusion protein Ag2128
• Full Name: GFP tag
• Calculated Molecular Weight: 26 kDa
• GenBank Accession Number: M62653
• Conjugate: CoraLite® Plus 647 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 654 nm / 674 nm
• Form: Liquid
• Purification Method: Protein A purification
• Storage Buffer: PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
• Storage Conditions: Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

Green Fluorescent Proteins (GFPs) encompass a diverse range of proteins carrying a green chromophore, originating from various species and forming different protein lineages.

Wildtype GFP consists of 238 amino acid residues (26.9 kDa). GFP was first identified in the jellyfish Aequorea victoria. It emits green light with a peak wavelength of 509 nm upon excitation by blue light at 395 nm.

When fused with other proteins, GFP serves as a versatile reporter protein e.g. for quantifying expression levels or facilitates visualization of subcellular localization through fluorescence microscopy.

This antibody is a mouse (IgG2a) monoclonal antibody against GFP reactive to GFP, eGFP, eYFP, YFP and CFP. This antibody is labeled with CoraLite Plus 647.
