CoraLite® Plus 488-conjugated MAP1B Monoclonal antibody

MAP1B Monoclonal Antibody for IF-P, FC (Intra)

Host / Isotype

Mouse / IgG1

Reactivity

human, mouse, rat

Applications

IF-P, FC (Intra)

Conjugate

CoraLite® Plus 488 Fluorescent Dye

CloneNo.

1E6B9

Cat no : CL488-67423

Synonyms

Microtubule-associated protein 1B, MAP1B heavy chain, MAP-1B, MAP1 light chain LC1, 1E6B9

---

Validation Data Gallery

•

  IF Staining of rat brain using CL488-67423

  Immunofluorescent analysis of (4% PFA) fixed paraffin-embedded rat brain tissue using CoraLite® Plus 488 MAP1B antibody (CL488-67423, Clone: 1E6B9 ) at dilution of 1:200. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

•

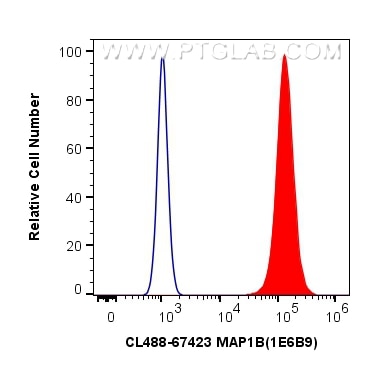

  FC experiment of SH-SY5Y using CL488-67423

  1X10^6 SH-SY5Y cells were intracellularly stained with 0.8 ug CoraLite® Plus 488 Anti-Human MAP1B (CL488-67423, Clone:1E6B9) (red), or 0.8 ug CoraLite® Plus 488 Mouse IgG1 Isotype Control (MOPC-21) (CL488-65124, Clone: MOPC-21) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Tested Applications

• Positive IF-P detected in: rat brain tissue
• Positive FC (Intra) detected in: SH-SY5Y cells

Recommended dilution

• Immunofluorescence (IF)-P: IF-P : 1:50-1:500
• Flow Cytometry (FC) (INTRA): FC (INTRA) : 0.80 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL488-67423 targets MAP1B in IF-P, FC (Intra) applications and shows reactivity with human, mouse, rat samples.

• Tested Reactivity: human, mouse, rat
• Host / Isotype: Mouse / IgG1
• Class: Monoclonal
• Type: Antibody
• Immunogen: MAP1B fusion protein Ag17709
• Full Name: microtubule-associated protein 1B
• Calculated Molecular Weight: 2468 aa, 271 kDa
• GenBank Accession Number: BC141853
• Gene Symbol: MAP1B
• Gene ID (NCBI): 4131
• Conjugate: CoraLite® Plus 488 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 493 nm / 522 nm
• Form: Liquid
• Purification Method: Protein G purification
• Storage Buffer: PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
• Storage Conditions: Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

Microtubule-associated protein 1B (MAP1B) is a cytoskeleton protein which can promote microtubule assembly. Previous reports have suggested that this protein is closely involved in neuronal development based on its extensive expression in the developing brain and moderate in mature neurons. Gene disruption or knockout studies of the MAP1B gene led to a delayed development of the nervous system in mice. It includes the N-terminal heavy chain and a C-terminal light chain. The MAP1B heavy chain has a microtubule-stabilization effect, and contains an actin-binding site that may play a role in the crosslinking of actin and microtubules, a function that may be important in neurite elongation. Various isoforms around 300-350 kDa of MAP1B can be observed due to the differences in phosphorylation state. (10704485)
