CoraLite® Plus 488-conjugated Dystrophin Monoclonal antibody

Dystrophin Monoclonal Antibody for IF/ICC, IF-P, FC (Intra)

Host / Isotype

Mouse / IgG2a

Reactivity

human, mouse, rat

Applications

IF/ICC, IF-P, FC (Intra)

Conjugate

CoraLite® Plus 488 Fluorescent Dye

CloneNo.

1G12E6

Cat no : CL488-68120

Synonyms

DMD, BMD, 1G12E6

---

Validation Data Gallery

•

  IF Staining of mouse skeletal muscle using CL488-68120

  Immunofluorescent analysis of (4% PFA) fixed mouse skeletal muscle tissue using CoraLite® Plus 488 Dystrophin antibody (CL488-68120, Clone: 1G12E6 ) at dilution of 1:200.

•

  IF Staining of H9C2 using CL488-68120

  Immunofluorescent analysis of (-20°C Methanol) fixed H9C2 cells using CoraLite® Plus 488 Dystrophin antibody (CL488-68120, Clone: 1G12E6 ) at dilution of 1:200.

•

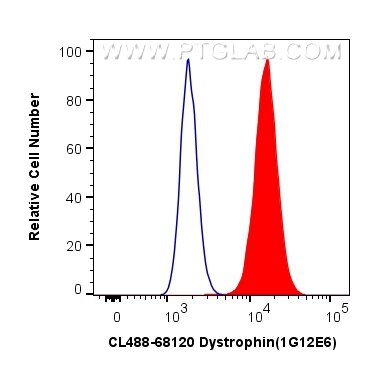

  FC experiment of HepG2 using CL488-68120

  1X10^6 HepG2 cells were intracellularly stained with 0.8 ug CoraLite® Plus 488 Anti-Human Dystrophin (CL488-68120, Clone:1G12E6) (red), or 0.8 ug CoraLite® Plus 488 Mouse IgG2a Isotype Control (C1.18.4) (CL488-65208, Clone: C1.18.4) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

---

Tested Applications

• Positive IF-P detected in: mouse skeletal muscle tissue
• Positive IF/ICC detected in: H9C2 cells
• Positive FC (Intra) detected in: HepG2 cells

Recommended dilution

• Immunofluorescence (IF)-P: IF-P : 1:50-1:500
• Immunofluorescence (IF)/ICC: IF/ICC : 1:50-1:500
• Flow Cytometry (FC) (INTRA): FC (INTRA) : 0.80 ug per 10^6 cells in a 100 µl suspension

It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Sample-dependent, Check data in validation data gallery.

Product Information

CL488-68120 targets Dystrophin in IF/ICC, IF-P, FC (Intra) applications and shows reactivity with human, mouse, rat samples.

• Tested Reactivity: human, mouse, rat
• Host / Isotype: Mouse / IgG2a
• Class: Monoclonal
• Type: Antibody
• Immunogen: Dystrophin fusion protein Ag4392
• Full Name: dystrophin
• Calculated Molecular Weight: 3685 aa, 427 kDa
• Observed Molecular Weight: 70 kDa, 430 kDa
• GenBank Accession Number: BC028720
• Gene Symbol: Dystrophin
• Gene ID (NCBI): 1756
• Conjugate: CoraLite® Plus 488 Fluorescent Dye
• Excitation/Emission Maxima Wavelengths: 493 nm / 522 nm
• Form: Liquid
• Purification Method: Protein A purification
• Storage Buffer: PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
• Storage Conditions: Store at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

Dystrophin (DMD or BMD) is a large muscle protein whose mutations cause Duchenne muscular dystrophy (DMD) and Becker muscular dystrophy (BMD), the childhood neuromuscular disorders that result in progressive muscle weakness, respiratory difficulties and cardiovascular dysfunction. Dystrophin is a crucial component of the dystrophin-glycoprotein complex which is essential for muscle membrane integrity and stability. Dystrophin is located on the cytoplasmic face of the sarcolemma and connects the cytoskeletal network to the sarcolemma and extracellular matrix. Multiple isoforms of dystrophin exist due to the alternative splicing, with a wide range of MW (69-72, 110-143, 271, 426 kDa). Most tissues contain transcripts of several isoforms.
