40X of FTLD-U case stained by 10782-2-AP and 60019-2-Ig, showing dystrophic neurites. (Figs were provided by Linda K. Kwong).

Various lysates were subjected to SDS PAGE followed by western blot with 10782-2-AP (TDP-43 antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours.

Immunohistochemical analysis of paraffin-embedded human gliomas tissue slide using 10782-2-AP (TDP-43 antibody) at dilution of 1:4000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

Immunohistochemical analysis of paraffin-embedded human gliomas tissue slide using 10782-2-AP (TDP-43 antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

Immunofluorescent analysis of (4% PFA) fixed HeLa cells using TDP-43 antibody (10782-2-AP) at dilution of 1:6000 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), CL594-phalloidin (red).

Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using 10782-2-AP (TDP-43 antibody) at dilution of 1:2000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

WB result of TDP-43 antibody (10782-2-AP; 1:30000; incubated at room temperature for 1.5 hours) with sh-Control and sh-TDP-43 transfected HeLa cells.

Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using 10782-2-AP (TDP-43 antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

IP result of anti-TDP-43 (IP:10782-2-AP, 4ug; Detection:10782-2-AP 1:50000) with HeLa cells lysate 1520 ug.

1X10^6 HeLa cells were intracellularly stained with 0.4 ug Anti-Human TDP-43 (10782-2-AP) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Isotype Control. Cells were fixed and permeabilized with Transcription Factor Staining Buffer Kit (PF00011).

Immunohistochemical analysis of paraffin-embedded human gliomas tissue slide using 60019-2-Ig (TDP-43 (human specific) antibody) at dilution of 1:10000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

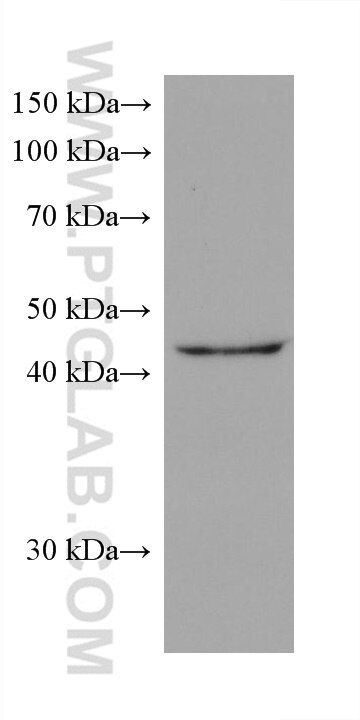

Various lysates were subjected to SDS PAGE followed by western blot with 60019-2-Ig (TDP-43 (human specific) antibody) at dilution of 1:100000 incubated at room temperature for 1.5 hours.

40X of FTLD-U case stained by 10782-2-AP and 60019-2-Ig, showing dystrophic neurites. (Figs were provided by Linda K. Kwong).

IP Result of anti-TDP-43 (human specific) (IP:60019-2-Ig, 5ug; Detection:60019-2-Ig 1:1000) with K-562 cells lysate 1720ug.

1X10^6 MCF-7 cells were stained with 0.2ug TDP-43 (human specific) antibody (60019-2-Ig, red) and control antibody (blue). Fixed with 90% MeOH blocked with 3% BSA (30 min). Alexa Fluor 488-conjugated AffiniPure Goat Anti-Mouse IgG(H+L) with dilution 1:1500.

Various cell lysates were subjected to SDS PAGE followed by western blot with 80002-1-RR (TDP-43 antibody) at dilution of 1:12000 incubated at room temperature for 1.5 hours.

HAP1 (WT and TARDBP KO) lysates prepared with NP-40 buffer, 50 μg protein loaded. 80002-1-RR incubated at 1:1000 at 4°C overnight in 5% milk in TBST. Ponceau stained transfers shown on right. Data provided by YCharOS, an open science company with a mission to validate commercial antibodies to improve scientific reproducibility and transparency.

WB result of TDP-43 antibody (80002-1-RR; 1:80000; incubated at room temperature for 1.5 hours) with sh-Control and sh-TDP-43 transfected HeLa cells.

HAP1 lysates prepared and IP of TARDBP performed using 2.0 μg of 80002-1-RR coupled to protein A- Sepharose beads. The Ponceau stained transfers of each blot are shown. Data provided by YCharOS, an open science company with a mission to validate commercial antibodies to improve scientific reproducibility and transparency.

Immunofluorescent analysis of (4% PFA) fixed rat brain tissue using 80002-1-RR (TDP-43 antibody) at dilution of 1:200 and CoraLite488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).

Immunofluorescent analysis of (4% PFA) fixed SH-SY5Y cells using TDP-43 antibody (80002-1-RR, Clone: 16A22 ) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L). Red: staining with CoraLite555-Phalloidin.

Immunofluorescent analysis of (4% PFA) fixed HeLa cells using TDP-43 antibody (80002-1-RR, Clone: 16A22 ) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L), CL594-Phalloidin (red).

HAP1 WT cells (yellow outline) and TARDBP KO cells (red outline) labelled with a green or a far red fluorescence dye, respectively. Cells fixed with 4% PFA and stained with 80002-1-RR at 1:200 plus DAPI. Bars = 10 μm. Data provided by YCharOS, an open science company with a mission to validate commercial antibodies to improve scientific reproducibility and transparency.

1X10^6 HeLa cells were intracellularly stained with 0.4 ug Anti-Human TDP-43 (for IF/FC) (80002-1-RR, Clone:16A22) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Control Antibody. Cells were fixed and permeabilized with Transcription Factor Staining Buffer Kit (PF00011).

1X10^6 MCF-7 cells were intracellularly stained with 0.2 ug CoraLite® Plus 647 Anti-Human TDP-43 (human specific) (CL647-60019, Clone:6H6E12) (red), or 0.2 ug isotype control (blue). Cells were fixed and permeabilized with Transcription Factor Staining Buffer Kit (PF00011).

Immunohistochemical analysis of paraffin-embedded Jurkat (left) and calyculin A treated Jurkat (right) cells slide using KHC0291 (Phospho-TDP43 (Ser409/410) IHC Kit).

Immunohistochemical analysis of paraffin-embedded human gliomas tissue slide using KHC0001 (TDP-43 IHC Kit).

Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using KHC0001 (TDP-43 IHC Kit).

Immunohistochemical analysis of paraffin-embedded rat brain tissue slide using KHC0001 (TDP-43 IHC Kit).

Immunohistochemical analysis of paraffin-embedded mouse cerebellum tissue slide using KHC0001 (TDP-43 IHC Kit).

Immunohistochemical analysis of paraffin-embedded human gliomas tissue slide using 60019-2-Ig (TDP-43 (human specific) antibody) at dilution of 1:10000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 60019-2-PBS in a different storage buffer formulation.

Various lysates were subjected to SDS PAGE followed by western blot with 60019-2-Ig (TDP-43 (human specific) antibody) at dilution of 1:100000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 60019-2-PBS in a different storage buffer formulation.

40X of FTLD-U case stained by 10782-2-AP and 60019-2-Ig, showing dystrophic neurites. (Figs were provided by Linda K. Kwong). This data was developed using the same antibody clone with 60019-2-PBS in a different storage buffer formulation.

IP result of anti-TDP-43 (human specific) (IP:60019-2-Ig, 5ug; Detection:60019-2-Ig 1:1000) with K-562 cells lysate 1720ug. This data was developed using the same antibody clone with 60019-2-PBS in a different storage buffer formulation.

1X10^6 MCF-7 cells were stained with 0.2ug TDP-43 (human specific) antibody (60019-2-Ig, red) and control antibody (blue). Fixed with 90% MeOH blocked with 3% BSA (30 min). Alexa Fluor 488-conjugated AffiniPure Goat Anti-Mouse IgG(H+L) with dilution 1:1500. This data was developed using the same antibody clone with 60019-2-PBS in a different storage buffer formulation.

Standard curve of MP50030-1, TDP-43 Monoclonal Matched Antibody Pair - BSA and Azide free, measured by sandwich ELISA. Capture antibody: 66734-2-PBS. Detection antibody: 60019-2-PBS (Biotinylated). Standard: Ag13119. Range: 6.25-400 ng/mL.

Standard curve of MP80000-1, TDP-43 Hybrid Matched Antibody Pair - BSA and Azide free, measured by sandwich ELISA. Capture antibody: 60019-2-PBS. Detection antibody: 80001-1-PBS. Standard: Ag1833. Range: 78.1-5000 pg/mL.
