ChromoTek SUMO-Tag-Trap Agarose, Kit for Immunoprecipitation

The ChromoTek SUMO-Tag-Trap Agarose Kit consists of an anti-SUMO-Tag Nanobody/VHH, which is coupled to agarose beads. It also contains lysis, wash, and elution buffers that can be used for the immunoprecipitation of SUMO-tagged proteins from cell extracts of various organisms. The ChromoTek SUMO-Tag-Trap can also be used in conjunction with SUMO proteases such as SenP2 for on-bead digestion of SUMO-Tag fusion proteins to release the protein of interest.

Specificity

SUMO-Tag (all common variants)

Applications

IP, Co-IP

Type

Nanobody

Conjugate

Agarose

Cat no : sutak

Synonyms

SUMO tag, SUMOStar, SUMO

---

Validation Data Gallery

•

  Immunoprecipitation of three different variants of SUMO-tagged, GFP fusion proteins from E. coli cell lysates using SUMO-Tag-Trap Agarose. WB analysis was also done on samples from the Input (I), Flow-Through (F), and Bound (B) fractions using ChromoTek Mouse anti-Spot-tag Antibody (28a5) and Multi-rAb CoraLite Plus 647-Goat Anti-Mouse Recombinant Secondary Antibody (RGAM005).

•

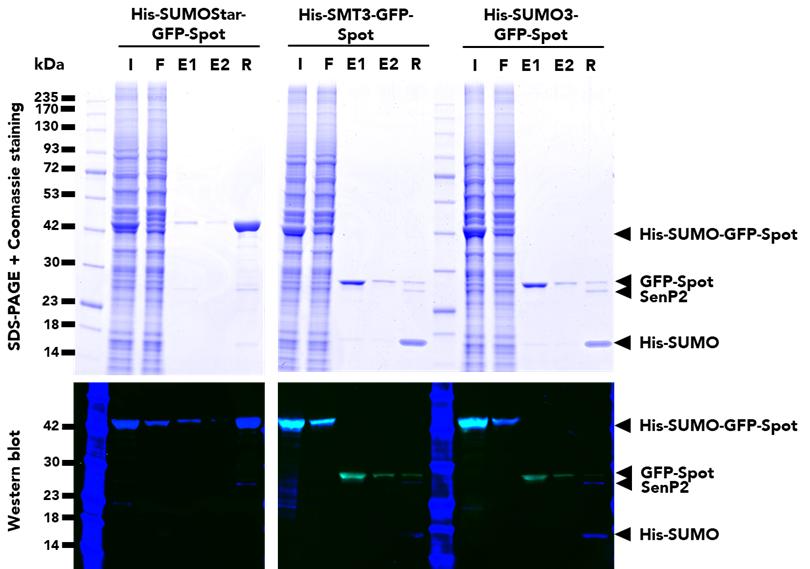

  Immunoprecipitation of three different variants of SUMO-tagged, GFP fusion proteins from HEK293T cell lysates using SUMO-Tag-Trap Agarose (suta) followed by on-bead digest and elution with SenP2 protease. The majority of the cleaved protein is released after the 1st elution (E1), with the SenP2 and SUMO-tag remaining with beads in the residual (R) fraction. SUMOStar is resistant to SenP2 and was used as a control. For all three variants, Fluorescent WB analysis was also done on the Input (I), Flow-Through (FT), Bound (B), Elution 1 and 2 (E1 and E2) and Residual (R) fractions of the IP and digest using Coralite Plus 647-conjugated His-Tag Monoclonal Antibody (CL647-66005), and GFP Polyclonal Antibody (PABG1) labeled with FlexAble 2.0 CoraLite Plus 488 Antibody Labeling Kit for Rabbit IgG (KFA501).

•

  Purified SUMO-GFP fusion proteins were digested using SenP2 protease. The Digest (D) material was then incubated with SUMO-Tag-Trap Agarose (suta). Digested protein shows up in the Flow-Through (F1 and F2) fractions, while His-SUMO tags remain bound to the Trap (B). As SUMOStar is a resistant to the SenP2 protease, it was used as a control.

---

Product Information

The ChromoTek SUMO-Tag-Trap Agarose Kit consists of an anti-SUMO-Tag Nanobody/VHH, which is coupled to agarose beads. It also contains lysis, wash, and elution buffers that can be used for the immunoprecipitation of SUMO-tagged proteins from cell extracts of various organisms. The ChromoTek SUMO-Tag-Trap can also be used in conjunction with SUMO proteases such as SenP2 for on-bead digestion of SUMO-Tag fusion proteins to release the protein of interest.

• Description: The SUMO-Tag-Trap Agarose Kit contains SUMO-Tag-Trap Agarose, lysis, wash, and elution buffers for efficient immunoprecipitation of SUMO-tagged proteins.;

  • Fast, reliable & efficient one-step immunoprecipitation;

  • Ready-to-use;

  • No heavy & light antibody chains;

  • Stable under harsh washing conditions;

  • Suitable for downstream mass spec analysis;

  • Works in samples from: mammals, plants, yeast, etc.

• Applications: IP, Co-IP
• Specificity/Target: Binds specifically to all common variants of the SUMO-Tag. The SUMO-Tag is based on Small Ubiquitin-like Modifier (SUMO) proteins of a size of ca. 11 kDa, which are covalently attached to target proteins as a post-translational modification. Fusion of the SUMO-Tag to a protein of interest (POI) may increase expression and solubility of the POI. Also, the SUMO-Tag can be specifically removed by SUMO proteases such as SenP2 without leaving non-native residues behind. At least three SUMO variants are commonly used as SUMO-Tag and are all recognized by the ChromoTek SUMO-Tag-Trap: the yeast SUMO homolog SMT3, the human SUMO3 and SUMOStar, a version of SMT3 resistant to SUMO proteases. Please note that the ChromoTek SUMO-Tag-Trap will also bind non-discriminatorily to endogenous SUMO homologs such as SUMO1, SUMO2 and SUMO3 present in human cells.
• Binding Capacity: 20 ug of recombinant SUMO-tagged protein (~40 kDa) per 25 uL bead slurry
• Conjugate: Agarose beads; ~90 um (cross-linked 4% agarose beads)
• Elution buffer: 2x SDS-sample buffer (Lammli)
• Wash Buffer Compatibility: 1M NaCl, 5 mM DTT, 5 mM β-mercaptoethanol, 5 mM TCEP, 2% NP40, 2% Triton X-100, 2 M Urea
• Type: Nanobody
• Class: Recombinant
• Host: Alpaca
• Affinity (KD): 50 nM
• Compatibility with mass spectrometry: The SUMO-Tag-Trap is optimized for on-bead digestion. For the application note, please click here:; On-bead digest protocol for mass spectrometry
• RRID: AB_3668962
• Storage Buffer: 20% ethanol
• Storage Condition: Shipped at ambient temperature. Upon receipt store at +4°C. Stable for one year. DO not freeze!

Kit components

Component	Description
SUMO-Tag-Trap Agarose	20 reactions (500 µl)
Lysis buffer	Optimized for cytoplasmic proteins and mammalian cell lysis
RIPA buffer	Optimized for nuclear/chromatin proteins and mammalian cell lysis
Wash buffer	Removal of unwanted proteins, peptides, etc.
Dilution buffer	Dilution of cell lysate
Elution buffer	For acidic elution
