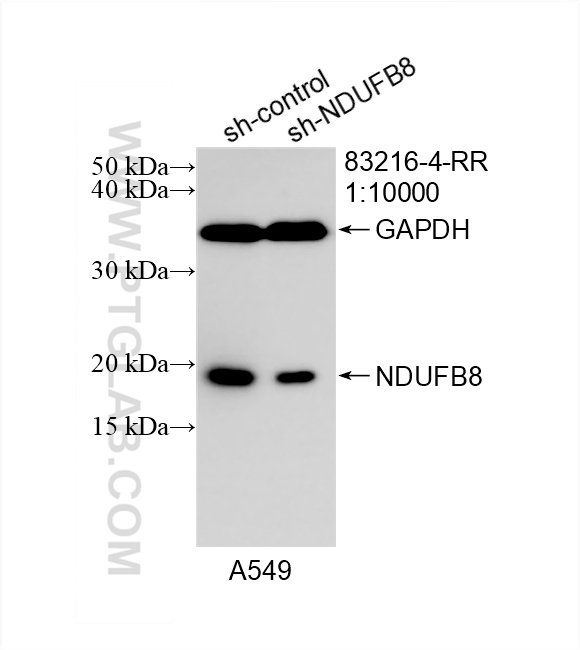

Various lysates were subjected to SDS PAGE followed by western blot with 83216-4-RR (NDUFB8 antibody) at dilution of 1:4000 incubated at room temperature for 1.5 hours.
Various lysates were subjected to SDS PAGE followed by western blot with 83216-4-RR (NDUFB8 antibody) at dilution of 1:4000 incubated at room temperature for 1.5 hours.
IHC staining of human intrahepatic cholangiocarcinoma using 83216-4-RR
Immunohistochemical analysis of paraffin-embedded human intrahepatic cholangiocarcinoma tissue slide using 83216-4-RR (NDUFB8 antibody) at dilution of 1:200 (under 20x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
Immunohistochemical analysis of paraffin-embedded human intrahepatic cholangiocarcinoma tissue slide using 83216-4-RR (NDUFB8 antibody) at dilution of 1:200 (under 20x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF Staining of HepG2 using 83216-4-RR
Immunofluorescent analysis of (4% PFA) fixed HepG2 cells using NDUFB8 antibody (83216-4-RR, Clone: 230510H1 ) at dilution of 1:250 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) (SA00013-1), CL594-Phalloidin (red).
Immunofluorescent analysis of (4% PFA) fixed HepG2 cells using NDUFB8 antibody (83216-4-RR, Clone: 230510H1 ) at dilution of 1:250 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) (SA00013-1), CL594-Phalloidin (red).
FC experiment of HeLa using 83216-4-RR
1x10^6 HeLa cells were intracellularly stained with 0.25 ug NDUFB8 Recombinant antibody (83216-4-RR, Clone:230510H1) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.25 ug Isotype Control (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).
1x10^6 HeLa cells were intracellularly stained with 0.25 ug NDUFB8 Recombinant antibody (83216-4-RR, Clone:230510H1) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.25 ug Isotype Control (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).
Affinity and Kinetic Characterization of 83216-4-RR
Biolayer interferometry (BLl) kinetic assays of 83216-4-RR against Human NDUFB8 were performed. The affinity constant is 5.00 nM.
The Proteintech guarantee covers Proteintech antibodies in any species and any application, including those not listed on the datasheet. If the antibody doesn’t perform, you can receive a hassle-free refund or credit note.
HepG2 cells, A549 cells, HeLa cells, Jurkat cells, mouse liver tissue, mouse brain tissue, rat brain tissue
Positive IHC detected in
human intrahepatic cholangiocarcinoma tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive IF/ICC detected in
HepG2 cells
Positive FC (Intra) detected in
HeLa cells
Recommended dilution
Application
Dilution
Western Blot (WB)
WB : 1:1000-1:8000
Immunohistochemistry (IHC)
IHC : 1:50-1:500
Immunofluorescence (IF)/ICC
IF/ICC : 1:125-1:500
Flow Cytometry (FC) (INTRA)
FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.
Product Information
83216-4-RR targets NDUFB8 in WB, IHC, IF/ICC, FC (Intra), ELISA applications and shows reactivity with human, mouse, rat samples.
Various lysates were subjected to SDS PAGE followed by western blot with 83216-4-RR (NDUFB8 antibody) at dilution of 1:4000 incubated at room temperature for 1.5 hours.
IHC Figures
IHC staining of human intrahepatic cholangiocarcinoma using 83216-4-RR
Immunohistochemical analysis of paraffin-embedded human intrahepatic cholangiocarcinoma tissue slide using 83216-4-RR (NDUFB8 antibody) at dilution of 1:200 (under 20x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF/ICC Figures
IF Staining of HepG2 using 83216-4-RR
Immunofluorescent analysis of (4% PFA) fixed HepG2 cells using NDUFB8 antibody (83216-4-RR, Clone: 230510H1 ) at dilution of 1:250 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) (SA00013-1), CL594-Phalloidin (red).
FC (INTRA) Figures
FC experiment of HeLa using 83216-4-RR
1x10^6 HeLa cells were intracellularly stained with 0.25 ug NDUFB8 Recombinant antibody (83216-4-RR, Clone:230510H1) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.25 ug Isotype Control (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).
AFFINITY Figures
Affinity and Kinetic Characterization of 83216-4-RR
Biolayer interferometry (BLl) kinetic assays of 83216-4-RR against Human NDUFB8 were performed. The affinity constant is 5.00 nM.
The species listed in Tested Reactivity are in-house verified and applicable species. For unlisted species, please refer to the homology analysis of the immunogen sequence and related species. For rabbit polyclonal antibodies, homology >70% is recommended. For mouse monoclonal antibodies and rabbit recombinant antibodies, homology >90% is recommended. Generally, the higher the homology, the greater the applicability. However, there will be certain differences in protein expression in different species, tissues or cells. Therefore, the homology analysis results are for reference only and do not serve as a guarantee.
At Proteintech, we pride ourselves on our antibody quality, customer service and transparency. As such, we are comparing our antibodies with other vendors, enabling easy identification and comparisons of key data to help you choose the suitable antibody for your needs.
We have selected the top cited antibodies from these vendors for you to compare.
Proteintech
NDUFB8 Recombinant antibody
Catalog Number
83216-4-RR
Citations
-
Dilutions
WB : 1:1000-1:8000 IHC : 1:50-1:500 IF/ICC : 1:125-1:500 FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension
Applications
WB, IHC, IF/ICC, FC (Intra), ELISA
Reactivity
human, mouse, rat
Product Guarantee
Covers any species including not listed on datasheet
Covers any applications including not listed on datasheet
