Mouse CD206 Recombinant antibody, PBS Only

•

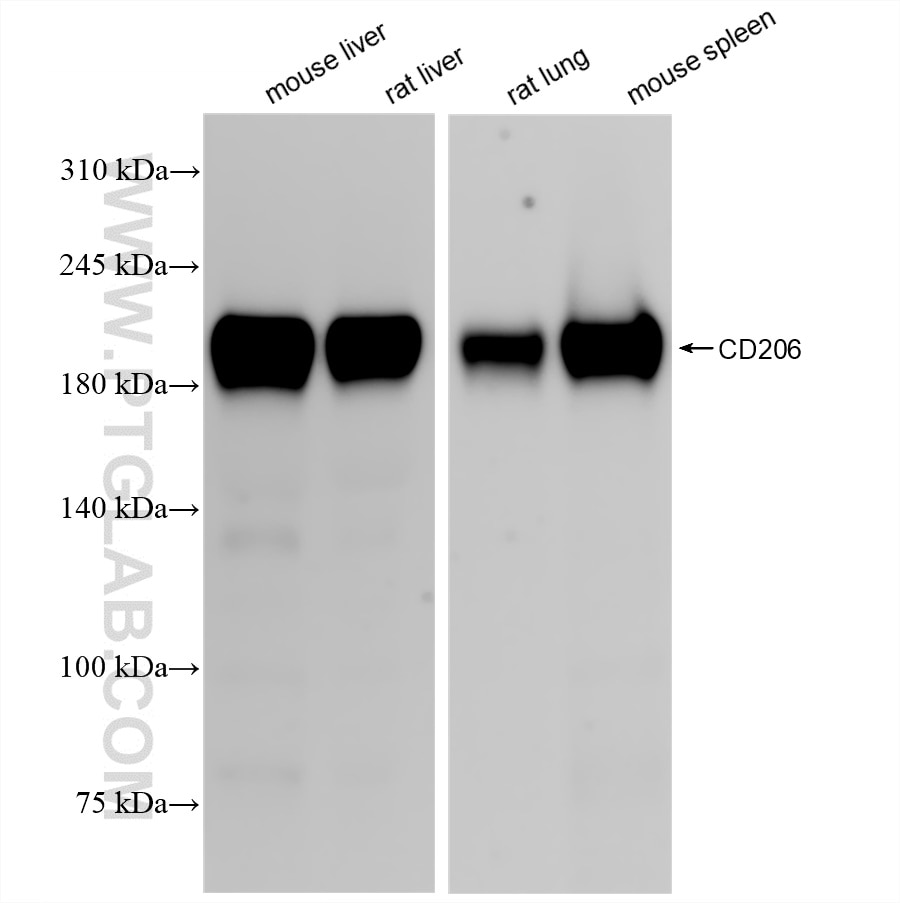

  WB analysis using 83485-1-RR (same clone as 83485-1-PBS)

  Various lysates were subjected to SDS PAGE followed by western blot with 83485-1-RR (CD206 antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 83485-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse lung using 83485-1-RR (same clone as 83485-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse lung tissue slide using 83485-1-RR (CD206 antibody) at dilution of 1:1000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 83485-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse lung using 83485-1-RR (same clone as 83485-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse lung tissue slide using 83485-1-RR (CD206 antibody) at dilution of 1:1000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 83485-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse liver using 83485-1-RR (same clone as 83485-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse liver tissue slide using 83485-1-RR (CD206 antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 83485-1-PBS in a different storage buffer formulation.

•

  IF Staining of mouse liver using 83485-1-RR (same clone as 83485-1-PBS)

  Immunofluorescent analysis of (4% PFA) fixed paraffin-embedded mouse liver tissue using CD206 antibody (83485-1-RR, Clone: 240344B9 ) at dilution of 1:1000 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 83485-1-PBS in a different storage buffer formulation.

CD206 Uni-rAb^TM Recombinant Antibody for WB, IHC, IF-P, ELISA

Cat No. 83485-1-PBS

Clone No.240344B9

Host / Isotype

Rabbit / IgG

Reactivity

mouse, rat

Applications

WB, IHC, IF-P, ELISA

Synonyms

MMR/CD206, Mrc1, MR, MMR, mannose receptor, C type 1

---

Product Information

83485-1-PBS targets CD206 in WB, IHC, IF-P, ELISA applications and shows reactivity with mouse, rat samples.

• Tested Reactivity: mouse, rat
• Host / Isotype: Rabbit / IgG
• Class: Recombinant
• Type: Antibody
• Immunogen: Recombinant protein
• Full Name: mannose receptor, C type 1
• Calculated Molecular Weight: 165 kDa
• Observed Molecular Weight: 200 kDa
• GenBank Accession Number: NM_008625.2
• Gene Symbol: CD206
• Gene ID (NCBI): 17533
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein A purfication
• UNIPROT ID: Q2HZ94
• Storage Buffer: PBS Only
• Storage Conditions: Store at -80°C.

Background Information

Background

CD206 (macrophage mannose receptor 1) is a lectin-type endocytic receptor expressed on selected macrophages, dendritic cells, and non-vascular endothelium and plays a role in antigen processing and presentation, phagocytosis, and intracellular signaling.

1. What is the molecular weight of CD206?

The molecular size of full-length CD206 is 170-180 kDa, depending on the exact tissue-specific glycosylation pattern (PMID: 19427834). Additionally, CD206 can be cleaved off and a soluble form (sMR) lacking the tail, with a slightly lower molecular weight, can be released to the cell medium (PMID: 9722572).

2. What is the subcellular localization of CD206?

CD206 is a type I membrane protein composed of a large extracellular multidomain, a transmembrane domain, and a short cytoplasmic tail. It is present at the plasma membrane and in endosomes, as CD206 undergoes constant recycling between the plasma membrane and endosomal compartment.

3. Is CD206 post-translationally modified?

CD206 undergoes quite extensive post-translational modifications, predominantly N-linked glycosylation that affects ligand binding recognition and affinity (PMID: 22966131).

4. Can CD206 marker be used as a marker of M2 macrophages?

The activation of macrophages with various stimuli leads to their polarization into classical (M1) or alternatively activated (M2) subtypes spectrums and both subtypes differ in their regulatory and effector functions (PMID: 24669294). Pathogens and IFN-γ promote M1 polarization, while IL-4 released during parasite infections and allergen response promotes M2 polarization. Classically, the markers of M2 macrophages include CD206, as well as arginase-1 (ARG1; https://www.ptglab.com/products/ARG1-Antibody-16001-1-AP.htm), CD163 (https://www.ptglab.com/products/CD163-Antibody-16646-1-AP.htm), and thrombospondin 1 (TSP1/ THBS1; https://www.ptglab.com/products/TSP1-Antibody-18304-1-AP.htm).

5. How can you polarize macrophages into M2 direction?

One of the most commonly used methods is stimulation by the addition of IL-4 cytokine. We recommend using our animal-free human IL-4 (https://www.ptglab.com/products/recombinant-human-il-4.htm).
