MAG Monoclonal antibody, PBS Only

MAG Monoclonal Antibody for WB, IHC, Indirect ELISA

Host / Isotype

Mouse / IgG1

Reactivity

Human, Mouse, Rat

Applications

WB, IHC, Indirect ELISA

Conjugate

Unconjugated

CloneNo.

3H9G3

Cat no : 66709-1-PBS

Synonyms

GMA, MAG, myelin associated glycoprotein, S MAG, SIGLEC 4A, SIGLEC4A

---

Validation Data Gallery

•

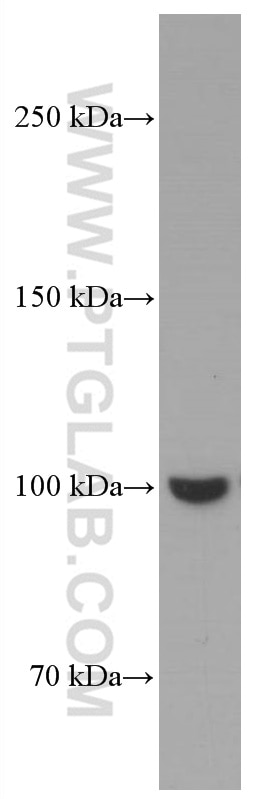

  WB analysis of rat brain using 66709-1-Ig (same clone as 66709-1-PBS)

  rat brain tissue were subjected to SDS PAGE followed by western blot with 66709-1-Ig (MAG antibody) at dilution of 1:3000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 66709-1-PBS in a different storage buffer formulation.

•

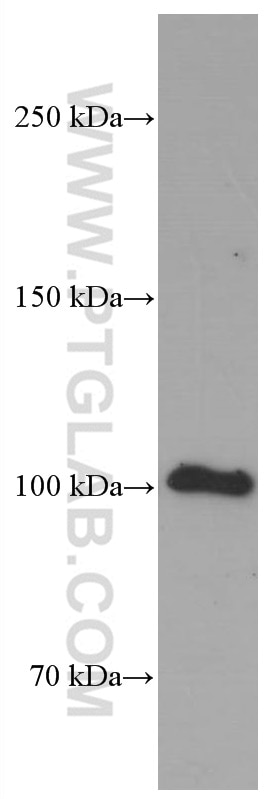

  WB analysis of rat cerebellum using 66709-1-Ig (same clone as 66709-1-PBS)

  rat cerebellum tissue were subjected to SDS PAGE followed by western blot with 66709-1-Ig (MAG antibody) at dilution of 1:3000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 66709-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse brain using 66709-1-Ig (same clone as 66709-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using 66709-1-Ig (MAG antibody) at dilution of 1:1000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 66709-1-PBS in a different storage buffer formulation.

•

  IHC staining of mouse brain using 66709-1-Ig (same clone as 66709-1-PBS)

  Immunohistochemical analysis of paraffin-embedded mouse brain tissue slide using 66709-1-Ig (MAG antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 66709-1-PBS in a different storage buffer formulation.

---

Recommended dilution

Application	Dilution
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Product Information

66709-1-PBS targets MAG in WB, IHC, Indirect ELISA applications and shows reactivity with Human, Mouse, Rat samples.

• Tested Reactivity: Human, Mouse, Rat
• Host / Isotype: Mouse / IgG1
• Class: Monoclonal
• Type: Antibody
• Immunogen: MAG fusion protein Ag6065
• Full Name: myelin associated glycoprotein
• Calculated Molecular Weight: 69 kDa
• Observed Molecular Weight: 100 kDa
• GenBank Accession Number: BC053347
• Gene Symbol: MAG
• Gene ID (NCBI): 4099
• Conjugate: Unconjugated
• Form: Liquid
• Purification Method: Protein G purification
• Storage Buffer: PBS Only
• Storage Conditions: Store at -80°C.

Background Information

MAG (myelin associated glycoprotein) is a 100-kDa transmembrane glycoprotein that is a member of the SIGLEC family of proteins. MAG is localized in periaxonal Schwann cell and oligodendroglial membranes of myelin sheaths where it functions in glia-axon interactions (PMID: 17241126). It is a functional ligand for the Nogo-66 receptor (PMID: 12089450). MAG is a cell adhesion molecule for postnatal neural development and is thought to be involved in the process of myelination.
